FCST601132
FCST
FCST601132
Product Overview

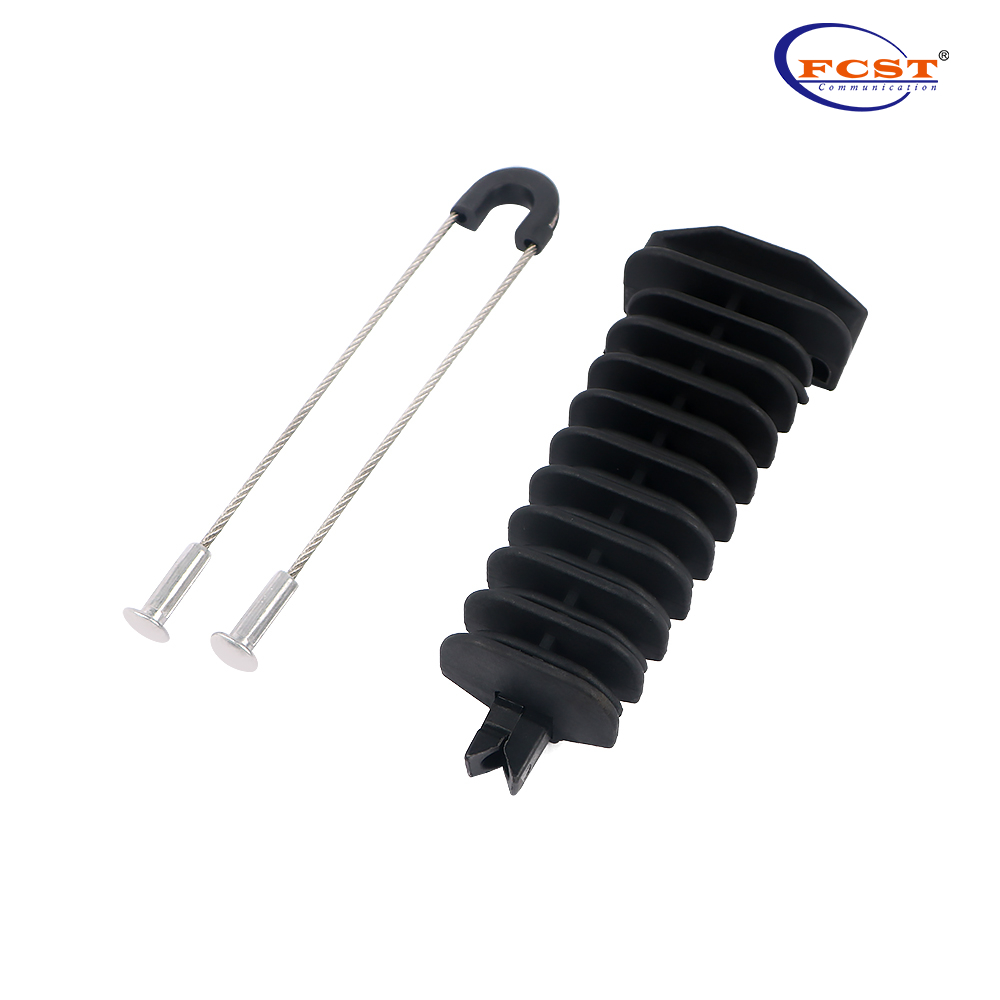

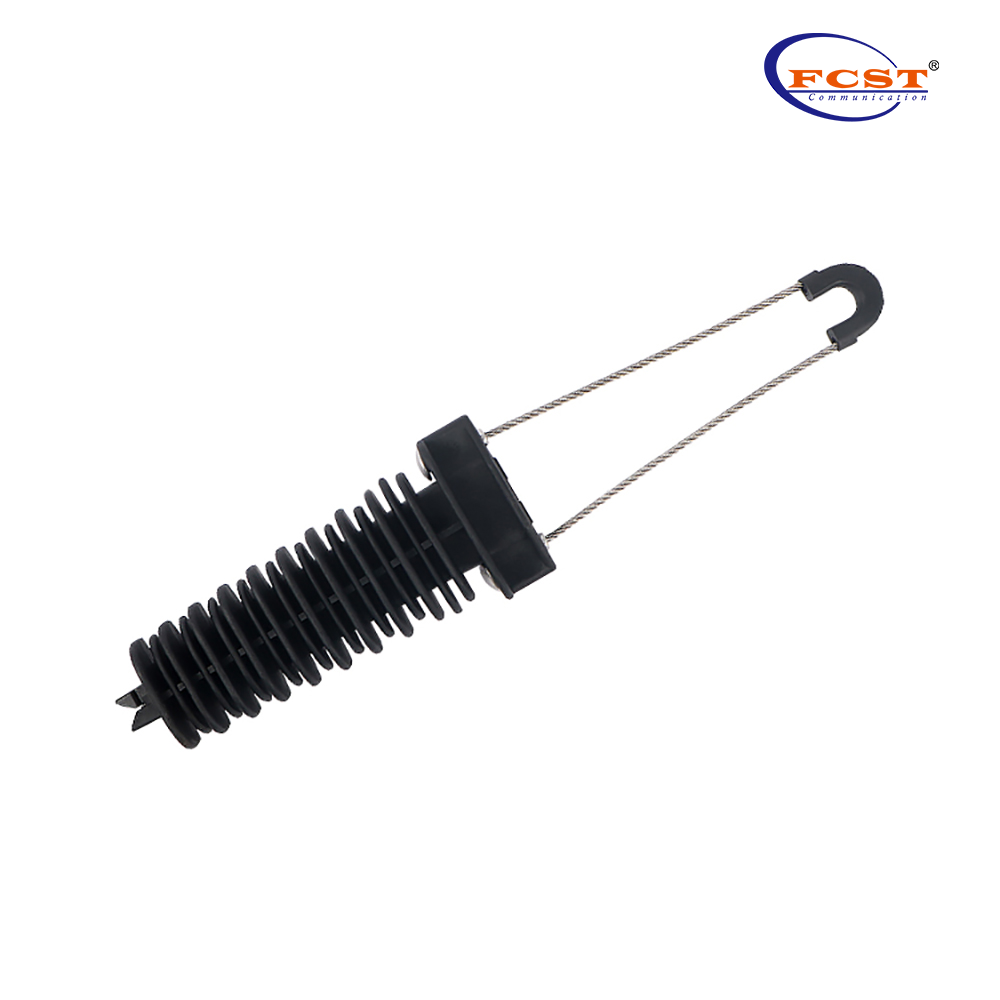

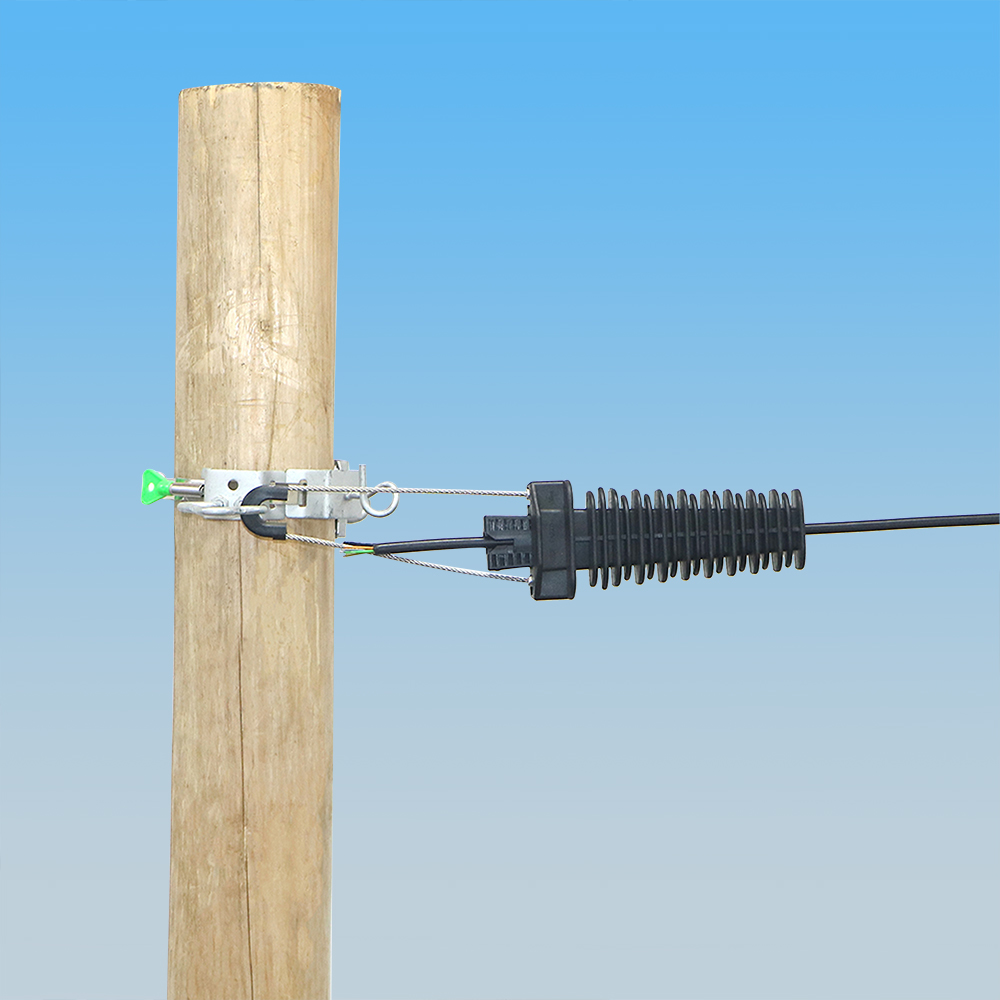

FCST601132 PA Wedge Clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance, an inner sheath consisting one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.Two stainless bail ends are compressed on it to lock into clamp. Simple assembling because the wedges open by pulling them back. The flexible steel loop can be fixed into a closed eye bracket.
Product Specifications
Construction | Description |
Product Name | FCST601132 PA Wedge Clamp |
Cable Type | Figure 8 Nonmetal Lightning Protection Optical Cable,ADSS cable |
Cable Diameter | 14~16mm |
Material | Wedge groove:PA66 + 50% fiberglass Steel cable:SUS304 material 7*7 strand twisted steel wire rope |
Dimension (mm) | 450*100*40 |
Max Span(m) | 150 |
Stretching Resistance(N) | 10000 |
Salt Spray Test(h) | 1000 |
Weight(g) | 500 |
Product Application
Packing Information
Construction | Description |
Outside Dimension(L*M*H)mm | - |
Weight/PC(kgs) | - |
Carton size(L*W*H)mm | 495*245*220 |
Qty/CTN(pcs) | 30 |
Weight/CTN(kgs) | 16.4 |
Product Overview
FCST601132 PA Wedge Clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance, an inner sheath consisting one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.Two stainless bail ends are compressed on it to lock into clamp. Simple assembling because the wedges open by pulling them back. The flexible steel loop can be fixed into a closed eye bracket.
Product Specifications
Construction | Description |
Product Name | FCST601132 PA Wedge Clamp |
Cable Type | Figure 8 Nonmetal Lightning Protection Optical Cable,ADSS cable |
Cable Diameter | 14~16mm |
Material | Wedge groove:PA66 + 50% fiberglass Steel cable:SUS304 material 7*7 strand twisted steel wire rope |
Dimension (mm) | 450*100*40 |
Max Span(m) | 150 |
Stretching Resistance(N) | 10000 |
Salt Spray Test(h) | 1000 |
Weight(g) | 500 |
Product Application
Packing Information
Construction | Description |
Outside Dimension(L*M*H)mm | - |
Weight/PC(kgs) | - |
Carton size(L*W*H)mm | 495*245*220 |
Qty/CTN(pcs) | 30 |
Weight/CTN(kgs) | 16.4 |
