Product Overview

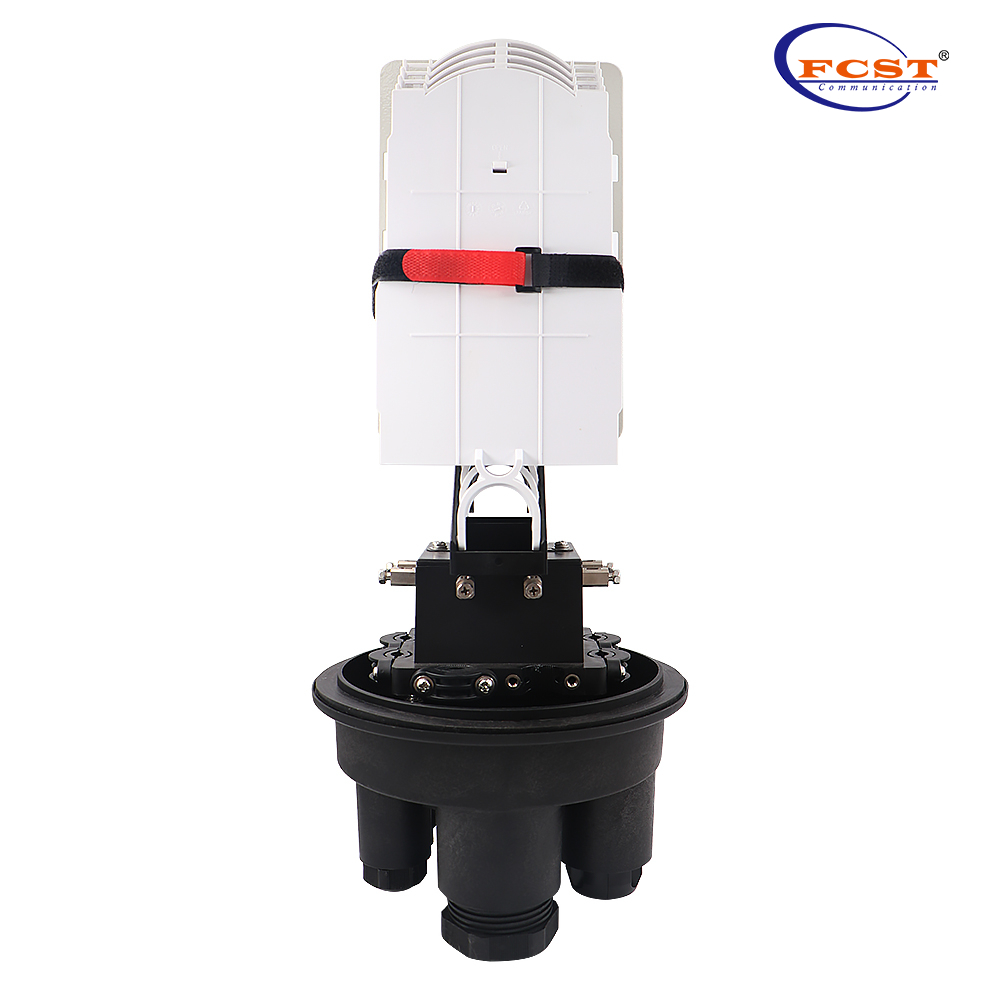

FCST012206 Fiber Optical Splice Closure provides several different types of capacity for our consumers to choose. What’s more, this products can meet the requirements of bundle cable and ribbon cable. Humanized design brings better user experience and safe operating environment for consumers.
Product Specifications
Construction | Description |
Max. Capacity | Single:96Cores Ribbon:432/576Cores |
Material | PP+GF |
Dimension (mm) | 460*Ф225 |
Inlets/Outlets | 5 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight（g） | 4100 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Ф8mm~Ф18mm |
Sealing Mode | Heat Shrinkseal |
Number Of Trays | 6 |
Capacity Of Tray | Single:24F Ribbon:6F/8F |
Packing Information
Construction | Description |
Outside Dimension（L*W*H）mm | 465*235*205 |
Weight/PC（kgs） | 4.4 |
Carton size（L*W*H）mm | 740*490*450 |
Qty/CTN（pcs） | 6 |
Weight/CTN（kgs） | 27.2 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
